Electrical Tapping Machines

Servo Controlled Electrical Tapping Machine REV M12

Servo Controlled Electrical Tapping Machine is Equipped with Digital Touch Screen, Programming in English & other Languages. Servo Motor & Driver are integrated into the Tapping Arm. Reinformed Duralumin Arm with Table Fixation Column Tapping up to M12. Product Type: M12 General Use: Tapping Capacity: Depends on Material and size Pcs/min PLC Control: Yes Bar Feeder: No Rigidity: High Motor: DC Motor Table Size: Based on Customer requirement Spindle Speed: 0-660 RPM Axial Choice: Radius of Arm Length Feature: High Precision, High Speed Warranty: 1 Year

MT M20 Hydraulic Vertical and Horizontal Tapping Machine

Tapping from M2 - M20 in both Vertical and Horizontal

1200 Watt 360 Nm Torque Automatic Electrical Tapping Machine Vertical model REV M33 model

Tapping capacity: M8 to M33 (stainless steel, hard or sticky steel) M8 to M36 (normal steel, aluminium) Rotational speed: 0 ï 155 RPM Work area: REV ï 1180 mm, REO ï 1185 mm. Height adjustable ï 520 + 460 mm. Voltage: 220-230V 50hz ï optional 110V 60hz Consumption: 1200W Torque: 360 Nm Weight: 44 kg (REV), 45 kg (REO). Standard equipment: Touch screen control panel - digital program in English or Spanish + manual tapping + automatic tapping + depth measurement + thread counter + + step tapping + torque control Servo-motor and driver integrated in threading arm Quick change chuck 31 Reinforced duraluminium swing arms Table mounting column Optional equipment: T-slotted table 900x600mm - With 2 drawers and cupboards Multitasking table with mooring elements,chip collector tray, and shelf Portable magnetic base 600 kg. Higher table mounting column 1000 mm. Case with 6 tap adapters with clutch for M30, M24, M20, M16, M12, M10. Tapa adapter with safety clutch for taps in metrics, BSP, BSW, UNC, UNF, NPT EN NORMA DIN O ISO

Industrial Electrical Tapping Machine REV M27 Vertical with 200 RPM Spindle Speed

Tapping capacity: M6 - M27 Speed: 0 to 200 RPM Working area: Circular 1080 mm Height adjustable 600mm Voltage: 220-230V 50hz optional 110V 60hz Consumption: 1200W Torque: 300 Nm Weight: 40 kg STANDARD EQUIPMENT: DIGITAL TOUCH SCREEN CONTROL Program in Spanish or English, manual or automatic tapping, depth control, tapping counter, torque control. SERVO-MOTOR AND DRIVER integrated in the tapping arm. TAPPING HEAD Mod. REV Vertical Quick change chuck 31. DURALUMINUM REINFORCED TILT ARMS TABLE FIXING COLUMN OPTIONAL EQUIPMENT: TABLE WITH T-SLOTS 900x600mm With 2 drawers and cabinets MULTITASKING LIGHT TABLE PORTABLE MAGNETIC BASE 1000 KG LONGER SUPPORT COLUMN 600MM BOX WITH 6 TAP ADAPTERS WITH CLUTCH FOR M20, M16, M12, M10, M8, M6. TAP ADAPTERS WITH CLUTCH IN METRIC, BSP, BSW, UNC, UNF, NPT IN DIN OR ISO STANDARD OR OTHERS

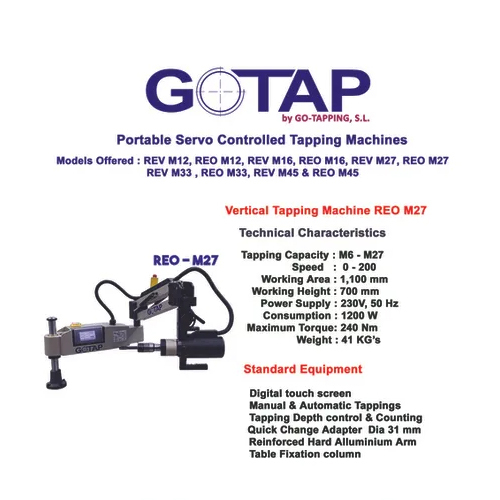

1200W 240Nm Torque High Speed Electrical Tapping Machine REO M27 model

Tapping capacity: M6 - M27 Speed: 0 to 200 RPM Working area: Circular 1085 mm Height adjustable 600mm Voltage: 220-230V 50hz optional 110V 60hz Consumption: 1200W Torque: 300 Nm Weight: 41 kg Standard Equipment: Digital Touch Screen Control Program in Spanish or English, manual or automatic tapping, depth control, tapping counter, torque control. SERVO-MOTOR AND DRIVER integrated in the tapping arm. TAPPING HEAD Mod. REO Vertic./Horiz. Quick change chuck 31. DURALUMINUM REINFORCED TILT ARMS TABLE FIXING COLUMN Optional Equipment: TABLE WITH T-SLOTS 900x600mm with 2 drawers and cabinets MULTITASKING LIGHT TABLE PORTABLE MAGNETIC BASE 1000 KG LONGER SUPPORT COLUMN 600MM BOX WITH 6 TAP ADAPTERS WITH CLUTCH FOR M20, M16, M12, M10, M8, M6. TAP ADAPTERS WITH CLUTCH IN METRIC, BSP, BSW, UNC, UNF, NPT IN DIN OR ISO STANDARD OR OTHERS

Semi-Automatic Electrical Tapping Machine REO M33 model

Tapping capacity: M8 a M33 Speed: 0 - 155 RPM Working area: Circular 1185 mm Height adjustable 800 mm Voltage: 220-230V 50hz optional 110V 60hz Consumption: 1200W Torque: 480 Nm Weight: 43 kg STANDARD EQUIPMENT: DIGITAL TOUCH SCREEN CONTROL Program in Spanish or English, manual or automatic, depth control, tapping counter, chip breaking, torque control. Servo-Motor and Driver Integrated in The Tapping Arm. Tapping Head Mod. Reo Vertic./horiz. Quick Change Chuck 31. Duraluminum Reinforced Tilt Arms Table Fixing Column Optional Equipment: Table with T-Slots 900x600mm with 2 Drawers and Cabinets Mesa Ligera Multitarea Portable Magnetic Base 1000 Kg Longer Support Column of 1000 Mm Case with 6 Tap Adapters with Safety Clutch for M30, M24, M20, M16, M12, M10. Tap Adapters with Clutch for Metric, Bsp, Bsw, Unc, Unf, Npt in Din or Iso Standard

1200 Watt Semi Automatic Precision Electrical Tapping Machine REV M45 Vertical model

Tapping capacity: M8 to M45 Speed (gear reduction 2 speeds): 0 50 RPM and 0-250 RPM Working area: 1200 mm Height adjustable 900mm Voltage: 220-230V 50hz optional 110V 60hz Consumption: 1200W Torque: 1200 Nm and 240 Nm Weight: 102 kg STANDARD EQUIPMENT: DIGITAL TOUCH SCREEN CONTROL Program in Spanish or English, manual or automatic, depth control, tapping counter, chip breaking, torque control. SERVO-MOTOR AND DRIVER integrated in the tapping arm. TAPPING HEAD Mod. REV Vertical Quick change chuck 48. DURALUMINUM REINFORCED TILT ARMS TABLE FIXING COLUMN OPTIONAL EQUIPMENT: WORKTABLE WITH T-SLOTS 900x600mm with drawers, cabinet and stabilizations bars PORTABLE MAGNETIC BASE 2000 KG BOX WITH 6 TAP ADAPTERS WITH CLUTCH FOR M45, M36, M30, M20, M16, M10. TAP ADAPTERS WITH CLUTCH FOR METRIC, BSP, BSW, UNC, UNF, NPT IN DIN OR ISO STANDARD

Tapping machines

Servo Controlled Electrical Tapping Machine is Equipped with Digital Touch Screen, Programming in English & other Languages. Servo Motor & Driver are integrated into the Tapping Arm. Reinformed Duralumin Arm with Table Fixation Column Tapping up to M12. Product Type: M12 General Use: Tapping Capacity: Depends on Material and size Pcs/min PLC Control: Yes Bar Feeder: No Rigidity: High Motor: DC Motor Table Size: Based on Customer requirement Spindle Speed: 0-660 RPM Axial Choice: Radius of Arm Length Feature: High Precision, High Speed Warranty: 1 Year

Flexible Arm NC Electric Tapping Machine REV M16 with 0-310RPM Spindle Speed

Tapping capacity: M4 - M16 Speed: 0 to 310 RPM Work area: Circular 1045 mm Height adjustable 600mm. Voltage: 220-230V 50hz optional 110V 60hz Consumption: 600W Torque: 58 Nm Weight: 27 kg Standard Equipment: Digital Touch Screen Control Program in Spanish or English, Manual or Automatic Tapping, Depth Control, Tapping Counter, Torque Control. Servo-Motor and Driver Integrated in The Tapping Arm. Tapping Head Mod. Rev Vertical Quick Change Chuck 19. Duraluminum Reinforced Tilt Arms Table Fixing Column Optional Equipment: Table with T-Slots 900x600mm with 2 Drawers and Cabinets Multitasking Light Table Portable Magnetic Base 600 Kg Longer Support Column 600 Mm Box with 6 Tap Adapters with Clutch, M16, M12, M10, M8, M6, M5. Tap Adapters with Clutch in Metric, Bsp, Bsw, Unc, Unf, Npt in Din or Iso Standard or Others

Servo Controlled Electrical Tapping Machine REO M16 with 1 Year Warranty

Tapping capacity: M4 - M16 Speed: 0 to 310 RPM Work area: Circular 1050 mm Height adjustable 600mm Voltage: 220-230V 50hz Consumption: 600W Torque: 58 Nm Weight: 28 kg STANDARD EQUIPMENT: DIGITAL TOUCH SCREEN CONTROL Program in Spanish or English, manual or automatic tapping, depth control, tapping counter, torque control. SERVO-MOTOR AND DRIVER integrated in the tapping arm. TAPPING HEAD Mod. REO Vertic./Horiz. Quick change chuck 19. Mod. DURALUMINUM REINFORCED TILT ARMS TABLE FIXING COLUMN OPTIONAL EQUIPMENT: TABLE WITH T-SLOTS 900x600mm With 2 drawers and cabinets Multitasking Light Table Portable Magnetic Base 300 Kg Longer Support Column 600 Mm Box with 6 Tap Adapters with Clutch M16, M12, M10, M8, M6, M5. Tap Adapters with Clutch in Metric, Bsp, Bsw, Unc, Unf, Npt in Din or Iso Standard or Others

Electrical Tapping Machine REO M45

Tapping Capacity: M8 - M45 Speed (gear reduction 2 speeds): 0 50 RPM and 0-250 RPM Working area: 1200 mm eight adjustable 900mm Voltage: 220-230V 50hz optional 110V 60hz Consumption: 1200W Torque: 1200 Nm and 240 Nm Weight: 105 kg Standard Equipment: Digital Touch Screen Control Program in Spanish or English, Manual or Automatic, Depth Control, Tapping Counter, Chip Breaking, Torque Control. Servo-Motor and Driver Integrated in The Tapping Arm. Tapping Head Mod. Reo Vertical- Horizontal Quick Change Chuck 48. Duraluminum Reinforced Tilt Arms Table Fixing Column Optional Equipment: Worktable with T-Slots 900x600mm with Drawers, Cabinet and Stabilizations Bars Portable Magnetic Base 2000 Kg Box with 6 Tap Adapters with Clutch for M45, M36, M30, M20, M16, M10. Tap Adapters with Clutch for Metric, Bsp, Bsw, Unc, Unf, Npt in Din or Iso Standard

Servo Controlled Electrical Tapping Machine REO M12 Vertical & Horizontal model

Technical characteristics: Tapping capacity: M2 - M12 Turning speed: 0 to 660 RPM Working area: 1050 mm Height adjustable 600mm Voltage: 220-230V 50hz optional 110V 60hz Consumption: 600W Torque: 33 Nm Weight: 28 kg STANDARD EQUIPMENT: DIGITAL TOUCH SCREEN CONTROL Program in Spanish or English, manual or automatic tapping, depth control, tapping counter, torque control. SERVO-MOTOR AND DRIVER integrated in the tapping arm. Tapping Head Mod. Reo -Vertic./horiz. Quick Change Chuck 19. Duraluminum Reinforced Tilt Arms Table Fixing Column Optional Equipment: Table with T-Slots 900x600mm with 2 Drawers and Cabinets Multitasking Light Table Portable Magnetic Base 600 Kg Longer Support Column 600 Mm Case with 6 Tap Adapters with Clutch for M12, M10, M8, M6, M5, M4. Tap Adapters with Clutch in Metric, Bsp, Bsw, Unc, Unf, Npt in Din or Iso Standard or Others

Flexible Arm Type Pneumatic Tapping Machine GN24

GN M24 ( M5 - M24 ) Tapping Machine.
